Informationes de Producto
Specification parametri
| Maximum input potestatem: | 5000 HP (1902KW-3730KW) |
| Max RPM: | 300 RPM |
| Plunger: | 5 |
| Longitudo plaga; | 11" |
| Vectis Lond: | 250000 |
| Sentinam pondus: | 26000LB |
| Apparatus Ratio: | 7.525:1 Optimized for pellentesque et dual-cibus applications |
| 11:23 Optimization est electrica applicationes seu turbine agitatae |
| Plunger Diameter | Sentinam Displacement | 7.5255:1 Celeritas rotationis | 11.232:1 celeritas gyratoria | 7.5255:1 Celeritas rotationis | 11.232:1 celeritas gyratoria | 7.5255:1 Celeritas rotationis | 11.232:1 celeritas gyratoria | 7.5255:1 Celeritas rotationis | 11.232:1 celeritas gyratoria | 7.5255:1 Celeritas rotationis | 11.232:1 celeritas gyratoria | ||||||||||||
| 376 | 562 | 753 | 1123 | 1505 | 2246 | 1881 | 2808 | 2258 | 3370 | ||||||||||||||
| 50 | 100 | 200 | 100 | 200 | |||||||||||||||||||
| in. | mm. | Gallons | GPM | /hr | PSI | talea | GPM | /hr | PSI | talea | GPM | /hr | PSI | talea | GPM | /hr | PSI | talea | GPM | /hr | PSI | talea | |
| 4 | 102 | 2.992 | 0.0113 | 150 | 34 | 19894 | 1372 | 299 | 68 | 19894 | 1372 | 598 | 136 | 12889 | 889 | 748 | 170 | 10312 | 711 | 898 | 204 | 8593 | 592 |
| 4.5 | 114 | 3.787 | 0.0143 | 189 | 43 | 15719 | 1084 | 379 | 86 | 15719 | 1084 | 757 | 172 | 10184 | 702 | 947 | 215 | 8147 | 562 | 1136 | 258 | 6789 | 468 |
| 5 | 127 | 4.675 | 0.0177 | 234 | 53 | 12732 | 878 | 467 | 106 | 12732 | 878 | 935 | 212 | 8249 | 569 | 1169 | 265 | 6599 | 455 | 1402 | 319 | 5499 | 379 |
| 5.5 | 140 | 5.657 | 0.0214 | 283 | 64 | 10523 | 725 | 566 | 128 | 10523 | 725 | 1131 | 257 | 6818 | 470 | 1414 | 321 | 5454 | 376 | 1697 | 385 | 4545 | 313 |
| 5.75 | 146 | 6.183 | 0.0234 | 309 | 70 | 9628 | 664 | 618 | 140 | 9628 | 664 | 1237 | 281 | 6238 | 430 | 1546 | 351 | 4990 | 344 | 1855 | 421 | 4158 | 287 |
| 6 | 152 | 6.732 | 0.0255 | 337 | 76 | 8842 | 610 | 673 | 153 | 8842 | 610 | 1346 | 306 | 5729 | 395 | 1683 | 382 | 4583 | 316 | 2020 | 459 | 3819 | 263 |
| 6.5 | 165 | 7.901 | 0.0299 | 395 | 90 | 7534 | 519 | 790 | 179 | 7534 | 519 | 1580 | 359 | 4881 | 337 | 1975 | 449 | 3905 | 269 | 2370 | 538 | 3254 | 224 |
 |

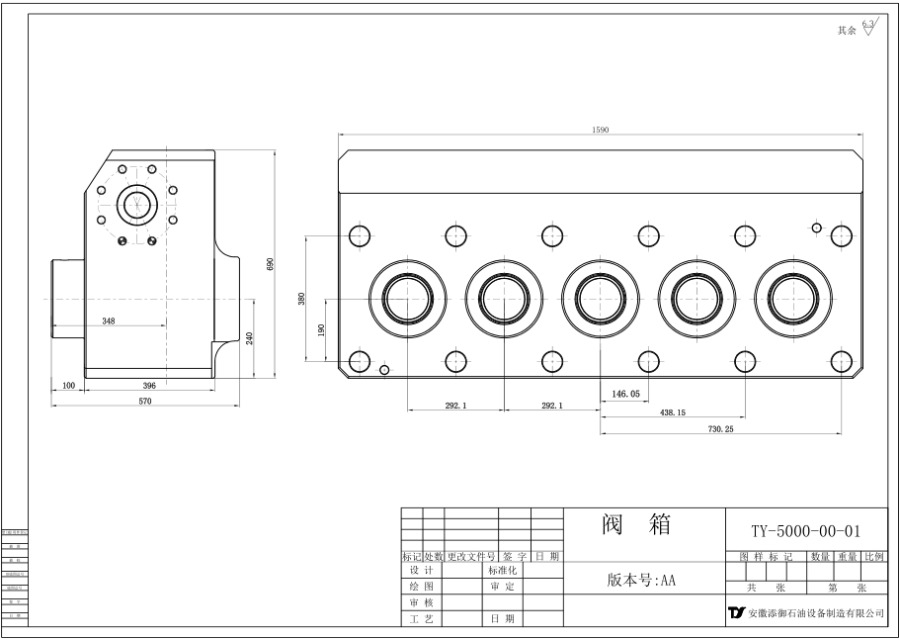

QWS5000 Stainless Steel Fluid End is designed for high-press and high-projection conditions and is the core component of electrica-aacti fracturing equipment. It is made of 15-5PH and 13-8 martensitic precipitation hardened stainless steel. With its high strength and corrosion resistance, it can easily cope with high-pressure and high-discharge operating environments.
In ustione processus, IM ACD LF VD ESR processus fornacis mediae frequentiae adhibetur ad penitus purgandum ferrum fusile, et contentum ferritum intra 3% stricte moderatur, stabilitatem materiae structurae procurans ac solidum fundamentum ad apparatum perficiendum ponens.
Processus curationis et caloris fictationis expoliuntur, utentes "tres-pere et tres-dracu" modi productionis una, coniuncta cum subsidio accentus et curatione senescente, ut efficaciter eliminare vim internam, expolire structuram frumenti et signanter emendare proprietates mechanicas partium.
Secundum structuram, consilium socors traditum ad laternam genus augetur, quod accentus intentionem valde minuit, lassitudinem resistentiam auget et plus quam 35% ad vitam servitutis extendit. Postquam cavitas interior roboratur, accentus mechanica minuitur, accentus thermarum 35% augetur, et magna durities iacuit in superficie formatur, quae signanter resistentia et corrosio resistentiae indumentorum auget, et vitam servitutem plus quam 30% auget.
Praeterea amplis adaptationis et quantitatis consiliis varias operandi necessitates occurrere possunt, eamque optimam electionem efficiunt pro missionibus summus pressura et summus emissio..
